X-TEC 32 Power connectors

Can be used everywhere and independently of motor manufacturers; offers an end-to-end solution, from the control to the motor. When used in conjunction with the DIN-rail adaptors designed for the range, it is suitable for straight and angular housings, with fixing threads or add-on boxes, and can therefore be mounted in very different angles.

At a glance

X-TEC 32 Power connectors

Technical Parameters
  • Metal and plastic housings
  • Straight and angled housings
  • Add-on box and fixing thread
  • Quick-release fastener
  • Type of protection: IP 67
  • Up to 630 V on the pilot wires
Details
  • For multi-purpose use/not dependent on a specific manufacturer
  • Convenient to use
Accessories
  • DIN-rail adapter
  • Contacts
3+PE+5 metal or plastic

X-TEC 32 Power connectors

Versatile and functional, it provides clarity in the confusion of different interfaces. Regardless of the motor manufacturer, the connector ensures stable connections of servo motors, asynchronous motors and 3-phase consumers. It offers DESINA colour coding using a coding ring and five auxiliary contacts. It also offers a simple 360° crown shield connection. Power/signal:  3/1 mm max., power/signal conductor cross-section: 10/1.5 mm².

Versions

X-TEC 32 Power connectors 3+PE+5 metal or plastic

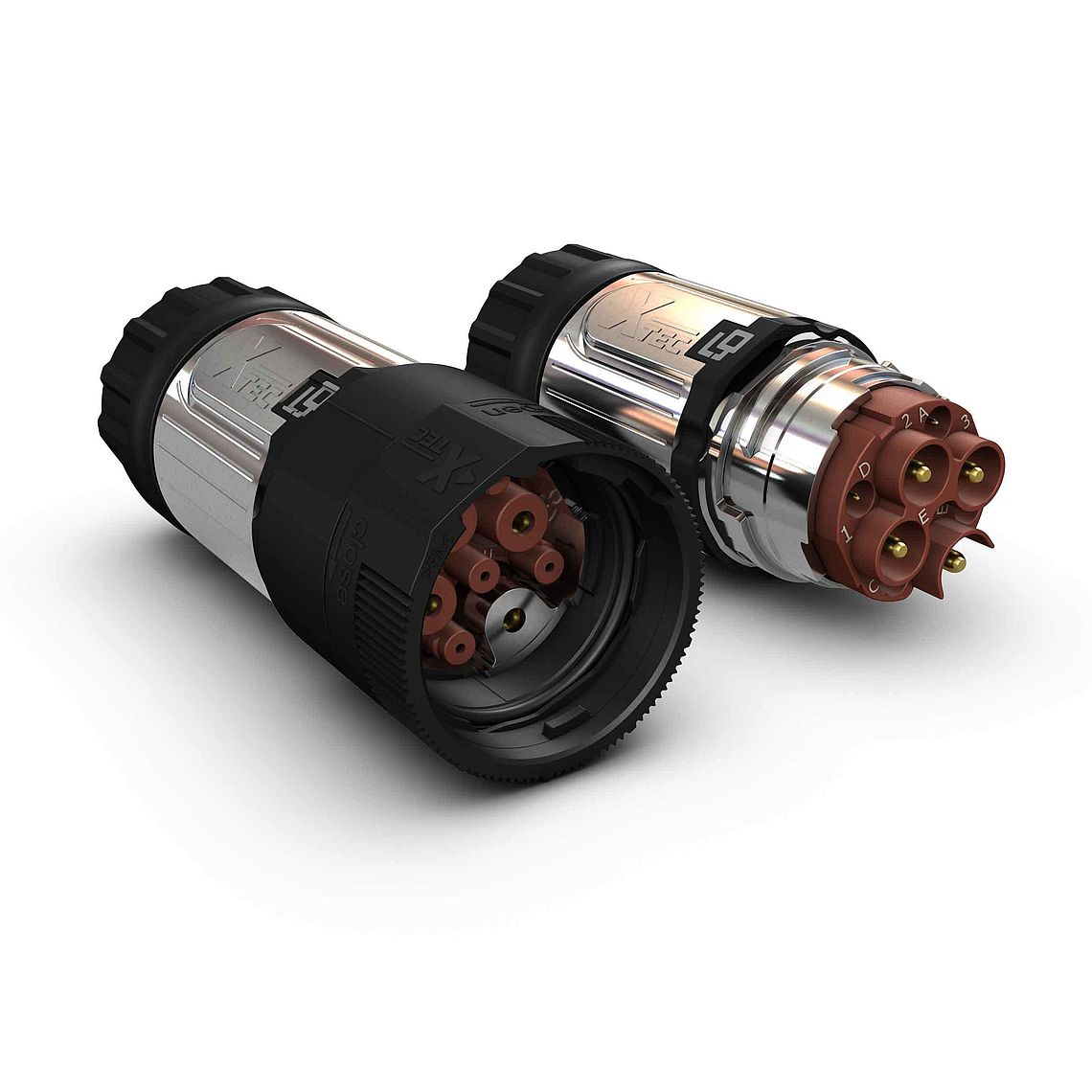

X-TEC 32 power connector 3+PE+5 metal, straight

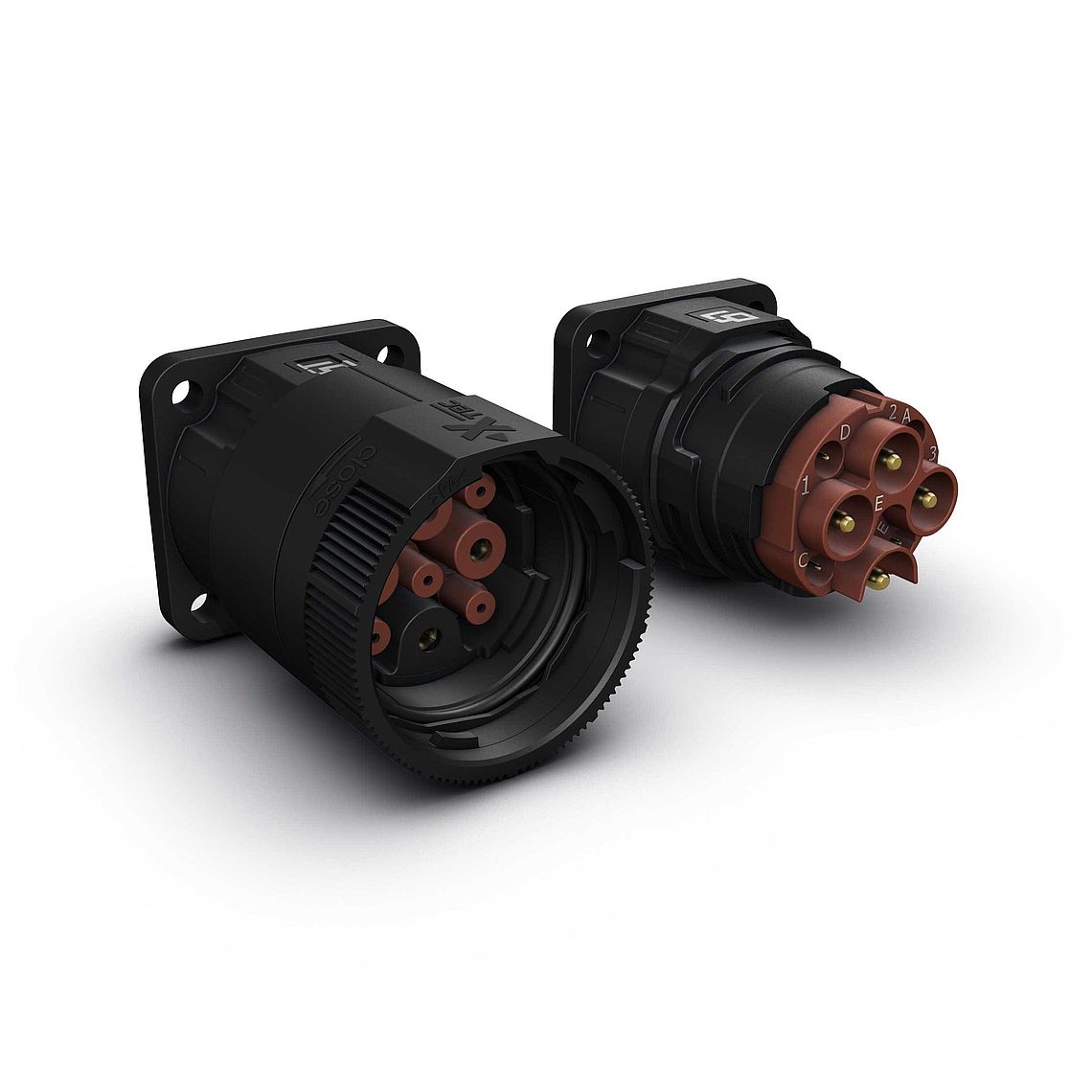

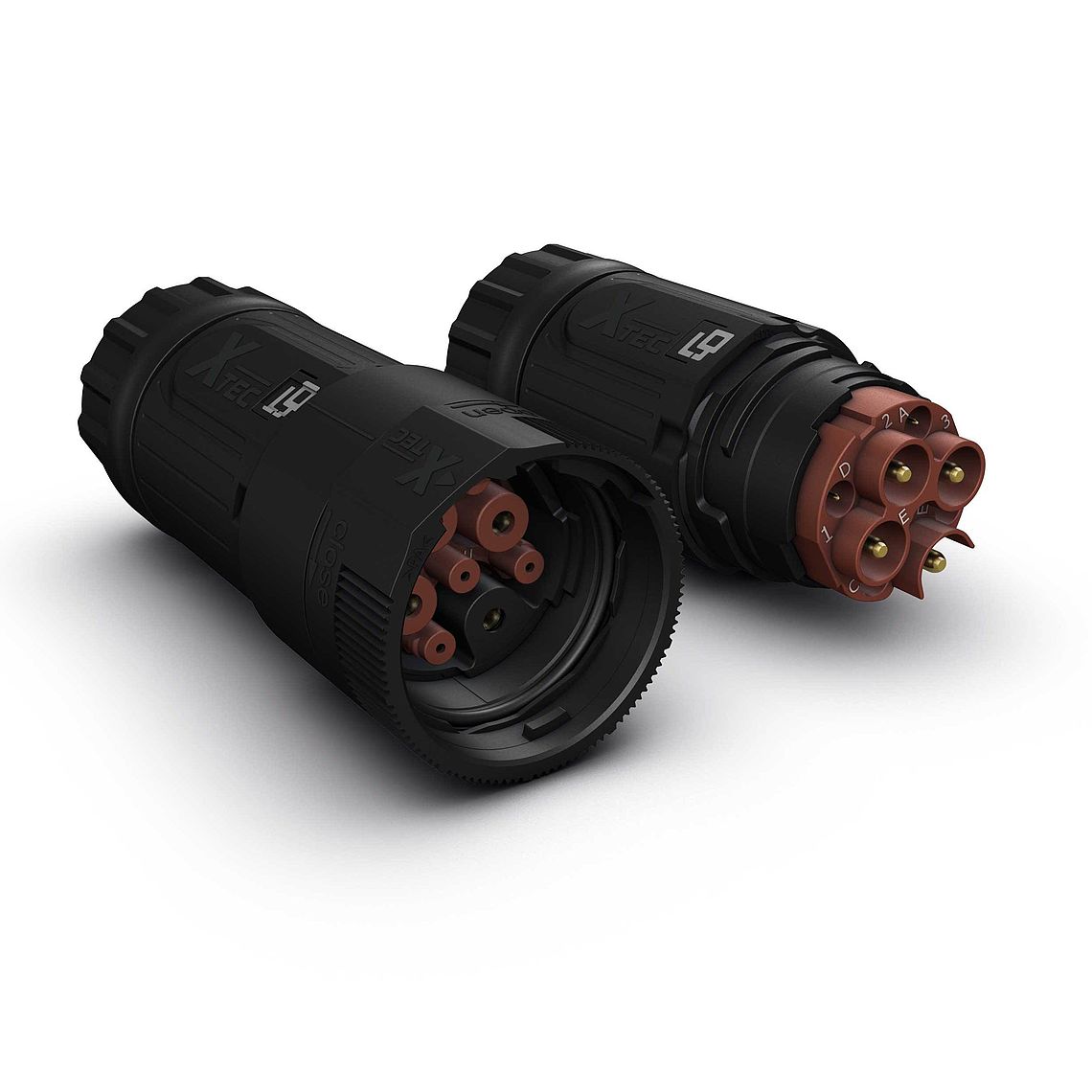

X-TEC 32 power connector 3+PE+5 plastic, straight

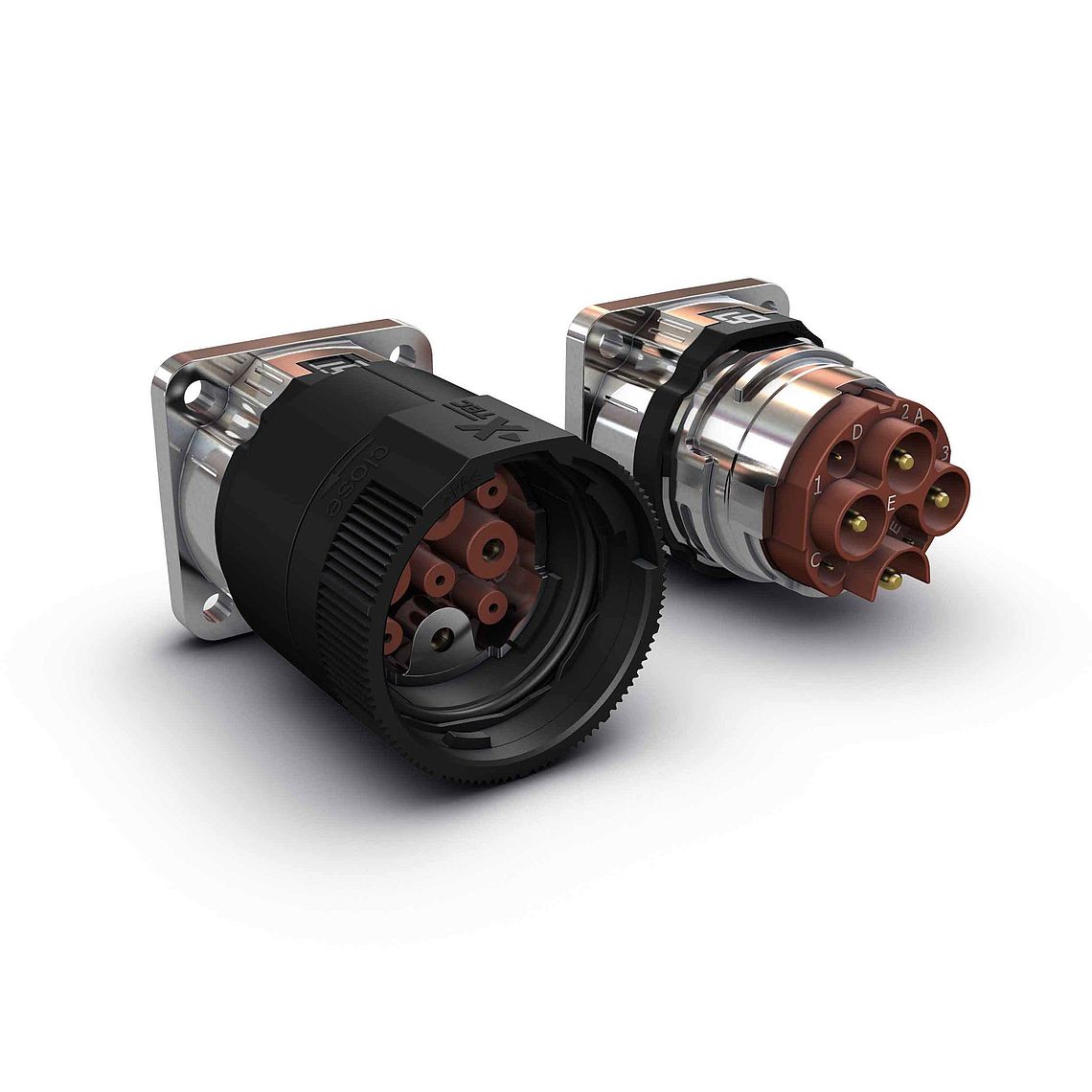

X-TEC 32 power connector, add-on box 3+PE+5 metal, straight

X-TEC 32 power connector, add-on box 3+PE+5 plastic, straight

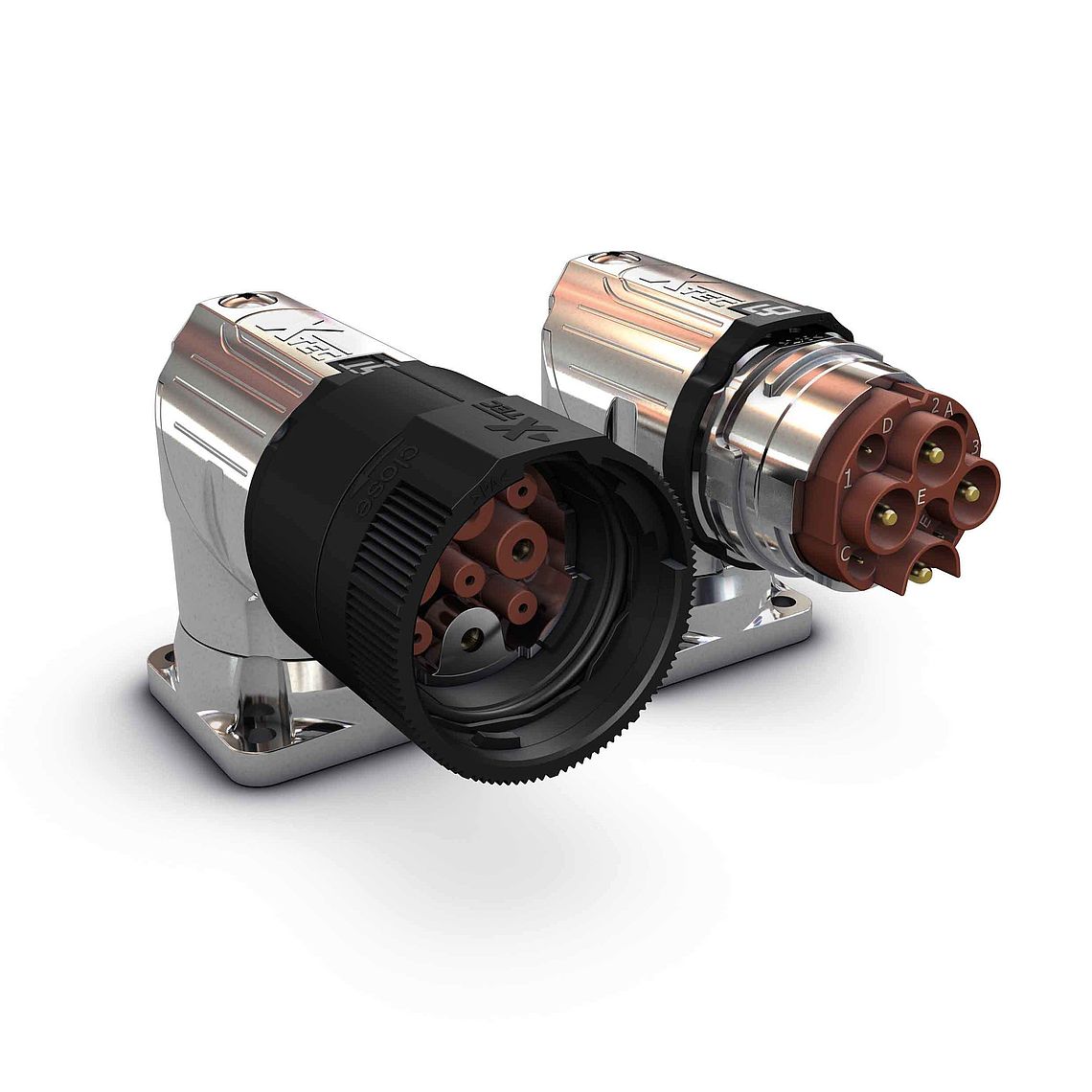

X-TEC 32 power connector, add-on box 3+PE+5 metal, angled

6+PE+4 metal or plastic

X-TEC 32 Power connectors

The plug-in connector is used for multi-purpose applications and is not dependent on a specific manufacturer. It is suitable for servo motors, asynchronous motors and 3-phase consumers. Integrated cable glands mean the X-TEC plug-in connectors can be installed easily and reliably, using either metric threads or an add-on box and fitted directly on asynchronous motors for star-delta connections and a power bus. Contact diameter 2 mm max., conductor cross-section 4 mm².

Versions

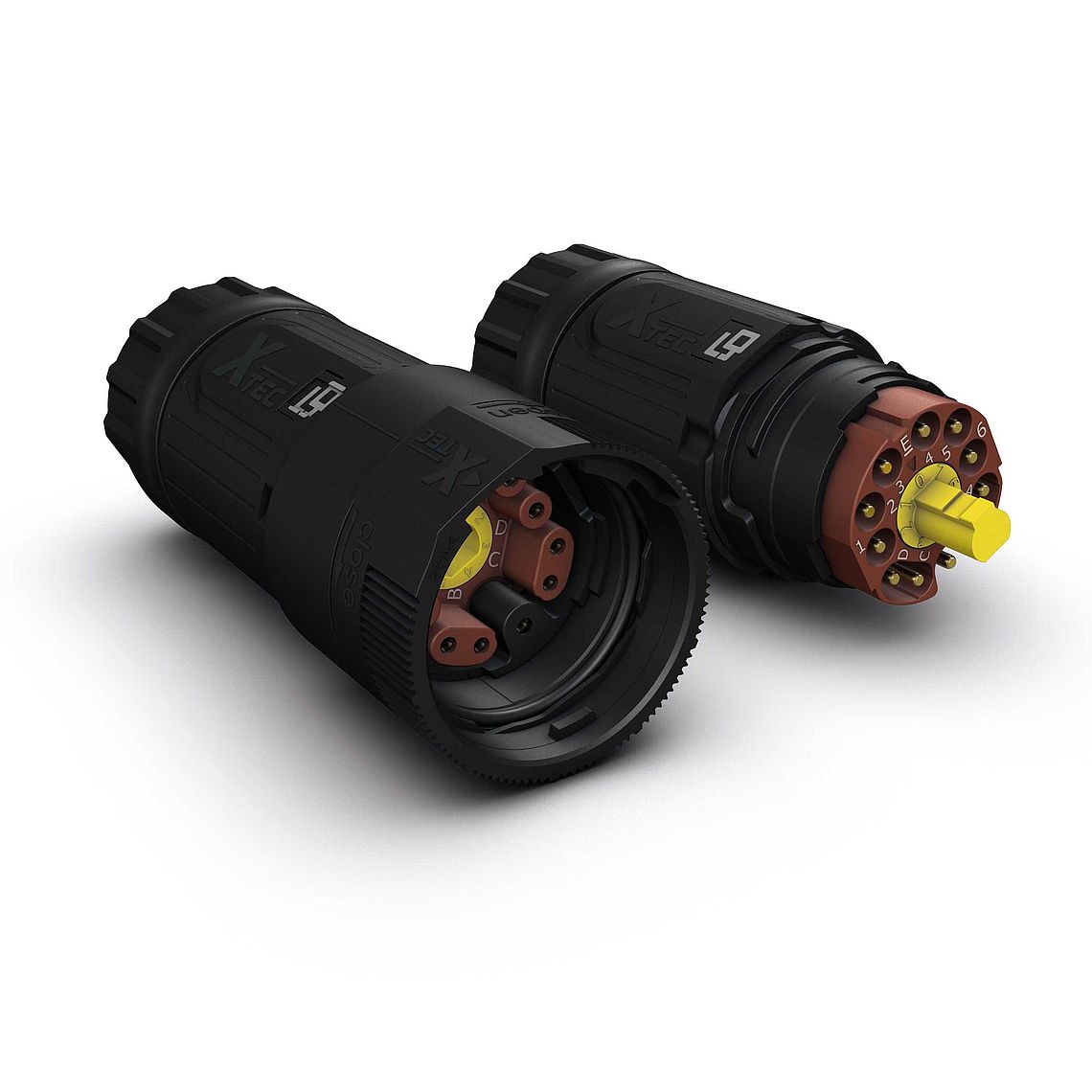

X-TEC 32 Power connectors 6+PE+4 metal or plastic

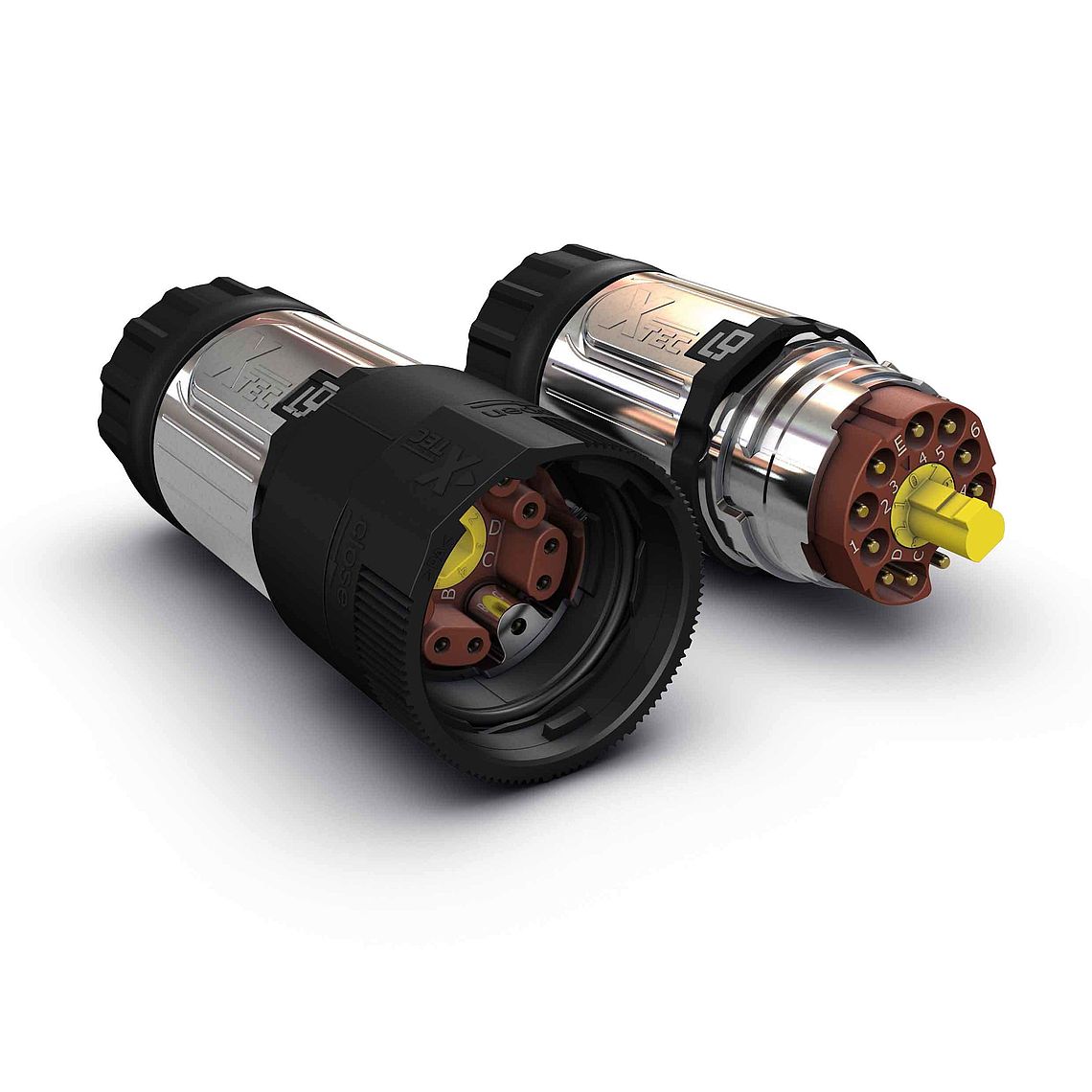

X-TEC 32 power connector 6+PE+4 metal, straight

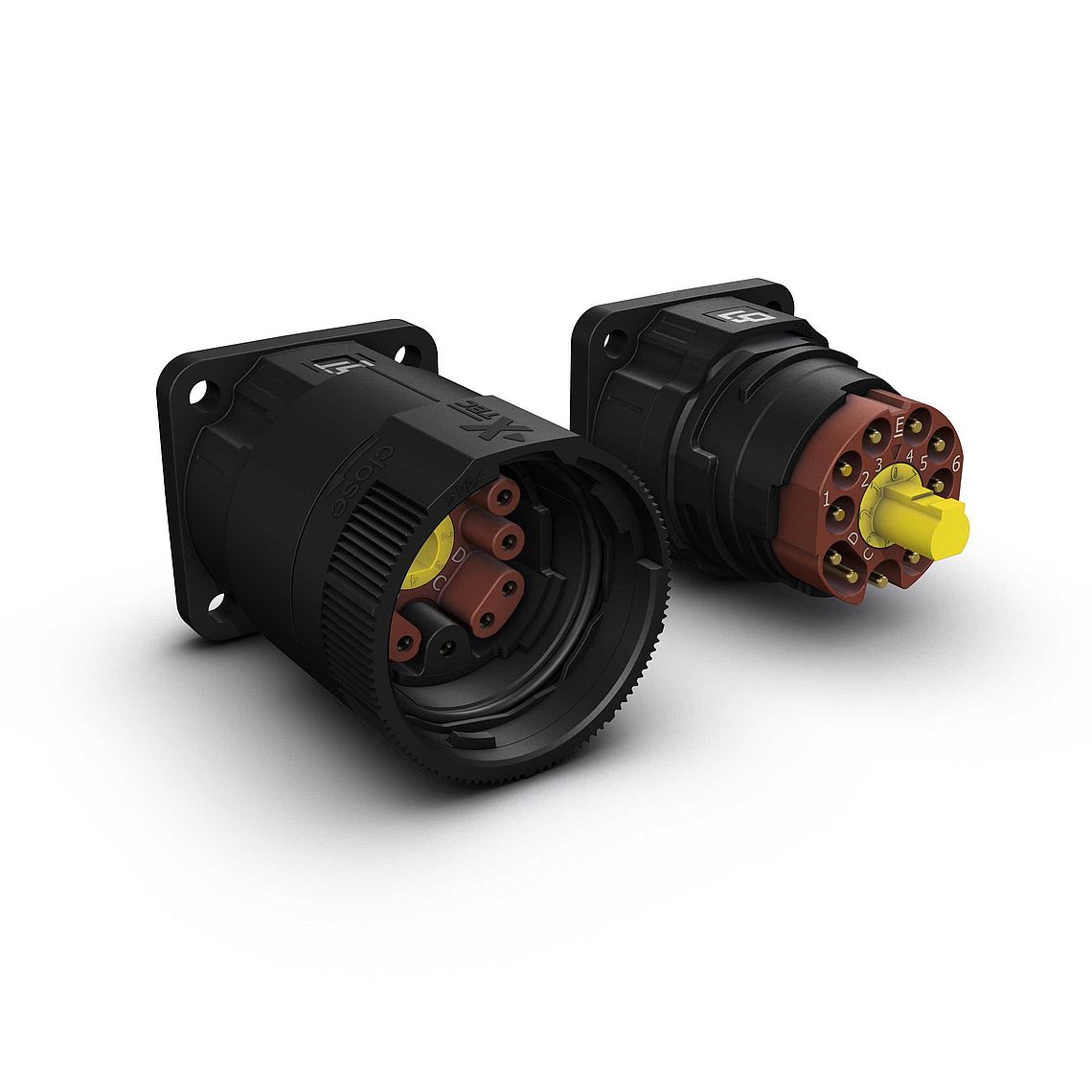

X-TEC 32 power connector 6+PE+4 plastic, straight

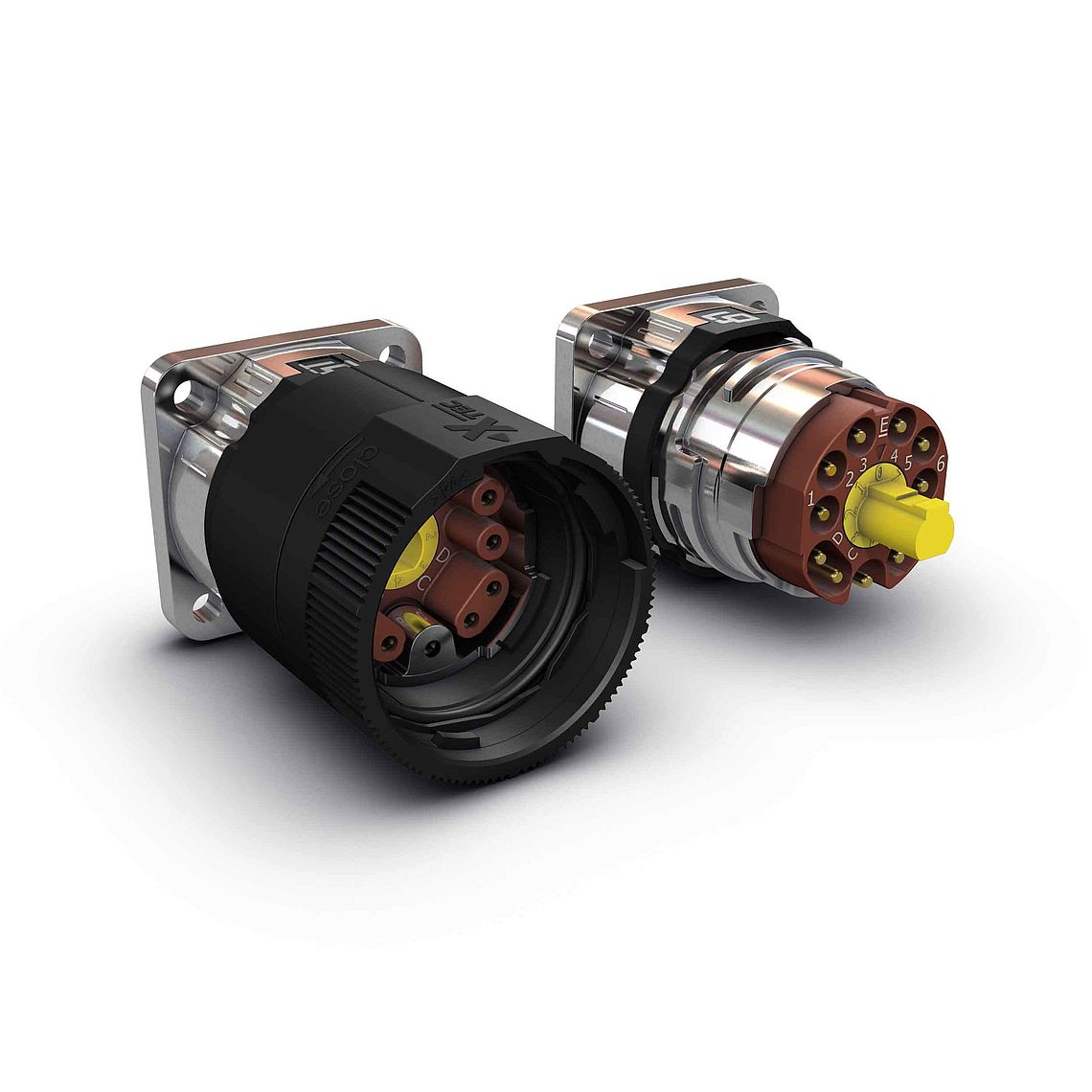

X-TEC 32 power connector, add-on box 6+PE+4 metal, straight

X-TEC 32 power connector, add-on box 6+PE+4 plastic, straight

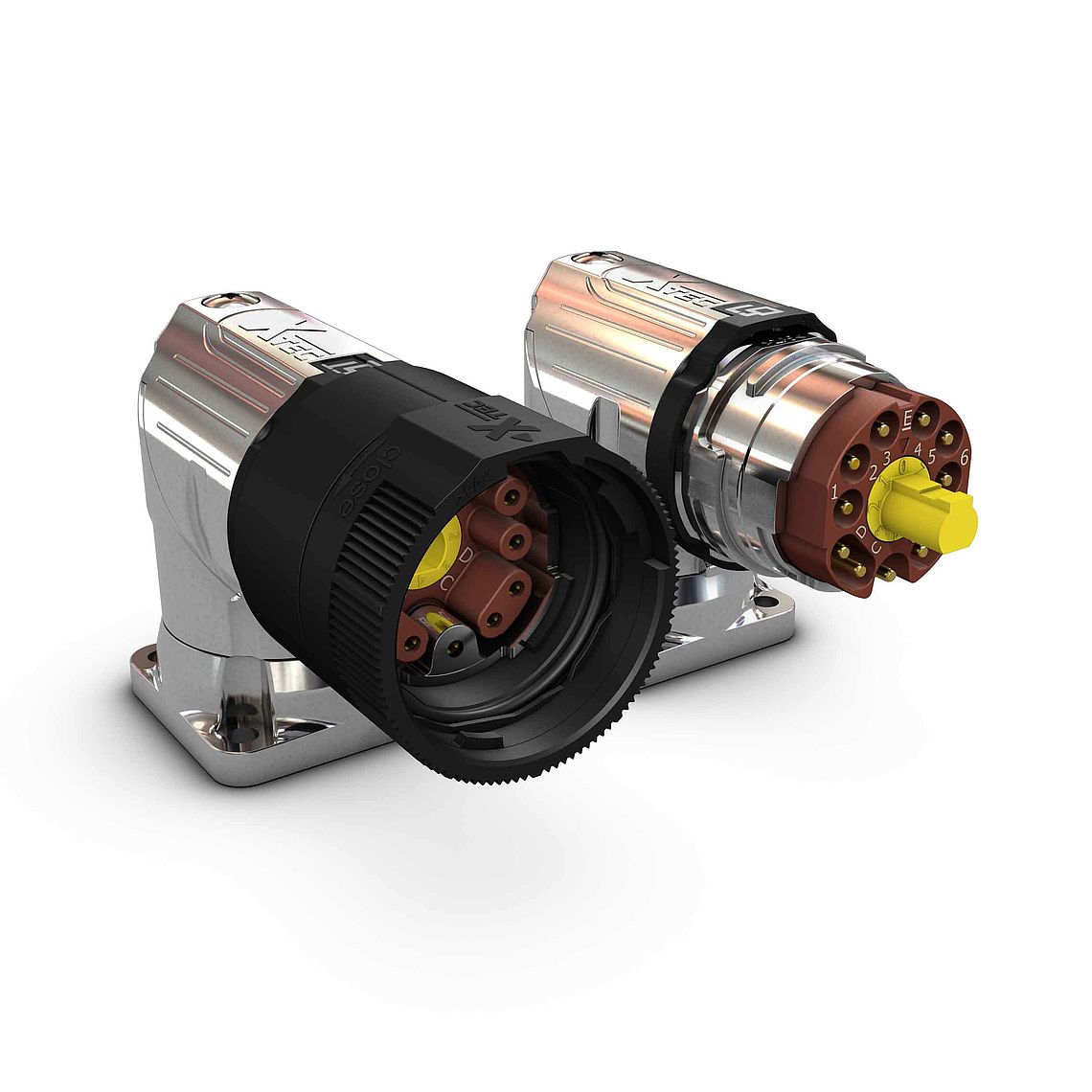

X-TEC 32 power connector, add-on box 6+PE+4 metal, angled
