M15 Power Plug-in connector X-TEC 15 & power cable W-TEC 15

Thanks to the plug & play principle of the M15 power connector, motors become simple, fast and safe - pluggable. The combination of the X-TEC 15 motor connector and the W-TEC 15 power cable from LQ is ideal for connecting asynchronous and three-phase motors up to 7.5 kW as well as frequency converters. With its high current transmission values (up to 16 A continuous load) at a voltage of 630V AC/DC, the M15 Power opens up a wide range of applications.

Buy now

M15 Power High performance in the smallest space

The connector cable combination is compatible with all motors with terminal board box and is connected via the M20x1.5 thread without adapters or special mechanical solutions. This means that motors can be converted to a pluggable solution in no time at all and complex cable glands are a thing of the past. The M15 Power provides an uncomplicated solution in the motor connection area.

Buy now

M15 Power Reduction of installation times to a minimum

The patented X-TEC quick-locking technology reduces connection times to a minimum. A quarter turn is all it takes and the motor is connected in a shock- and vibration-proof manner. The innovative quick-locking system also saves time and costs during installation. The M15 Power is also suitable for industrial use under adverse conditions thanks to kink and virbation protection. The hard-silver-plated contacts guarantee over 500 mating cycles. In addition, the full overmolding of the connectors ensures that they are permanently tamper-proof and sealed to IP65/67 and NEMA 4x/12.

M15 Power Technical data

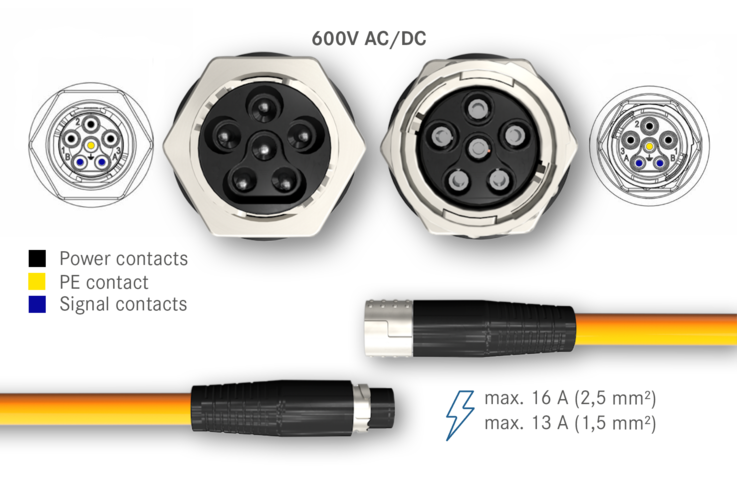

  • Temperature range: -30°C to 80°C
  • 4-pole: 3-pole (600V) + PE
  • 6-pole: 3-pole (600V) + 2-pole (63V) + PE
  • 3 power contacts up to 16 A, 2 signal contacts up to 10 A, 1 PE contact
  • AC/DC 600V
  • min. 500 mating cycles
  • Metal and plastic housing (overmolded)
  • Straight and angled housing
  • Shielded and unshielded
  • PVC and PUR cables
  • Drag chain capable
  • 4 x 1,5 mm² + 4 x 2,5mm²
  • 6 x 1,5mm² + 6 x 2,5mm²
  • Approvals: UL, CE according to NSR and RoHS
  • Standard conformity of:
    • Electrical characteristics
    • IP protection classes and media resistance
    • Vibration and shock load

M15 Power Compact, powerful and safe

  • For asychronous/three-phase motors up to 7.5 kW and frequency converters
  • Compact design even with larger cable cross sections
  • Suitable for industrial use due to kink and vibration protection
  • Tamper-proof due to plastic overmolding
  • Easy installation thanks to plug & play principle and patented quick locking system
  • No special assembly or special mechanical construction necessary due to use of the existing M 20x1.5 connection
